D3000 Programmable DC Power Supply

3KW

Description

Accurate, Fast Response and Easy to Measure

The D3000 programmable DC power supply is equipped with active power factor correction to improve circuit efficiency. The full range input voltage makes it suitable for most industries and countries without requiring a voltage conversion switch.

Monitor the output voltage, current, and working status in real time; also set the output voltage, current, protection, and settings preview via the front LED panel.

The system includes various I/O connectors and can monitor the output voltage and current by remote control signal or an RS-232 / RS-485 / GPIB interface, making it ideal for laboratory or large-scale mass production testing.

Features

• Full range input voltage 170¡V265 VAC
• Auto-switch constant voltage and current output
• Superimposed voltage by 2 units of series operation
• Supports active current balance via 4 units of parallel operation
• Comprehensive circuit and fan protection

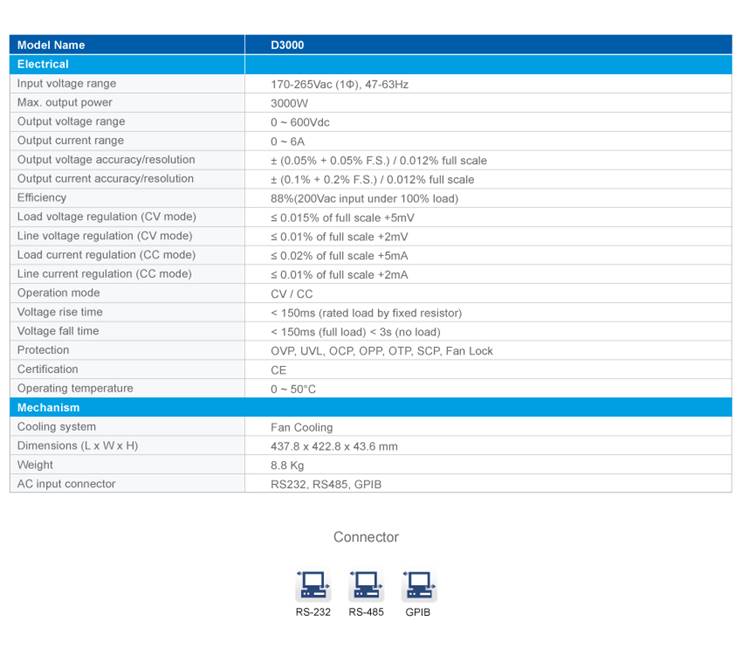

Specifications
